Ragos Support customization of non-standard equipment:like press brake machine, CNC bending machine, metal bending machine. precision the world Style press brake tooling, Special configuration profiles are available in a variety of fitting styles and quality grades to suit virtually any forming need.

To be the world's most reliable sheet metal forming equipment manufacturers!The main products are press brake machine,cnc bending machine,metal bending machine.

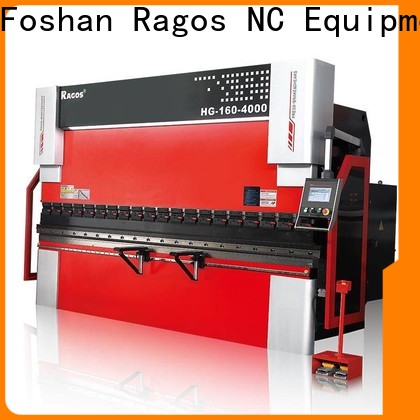

RAGOS produces the widest variety of hydraulic press brakes available today. From our HG 5 axis cnc hydraulic press brake series we offer more than 20 models and ranges from a small press brake that start at 0.6 foot in length to large press brakes up to 16 foot in bending length and more than 10 different tonnages ranging from 35 to 200 tons. Our premium more advanced ADS series is available with up to 14 CNC axis, Our HG series machines are top end precision and powerful metal benders offered in 13 different tonnages with capacities In addition to these two popular press brake series, we also offer the MG series for the customer that needs a no frill press brake. On the other side of the coin is the sophisticated AD Servo brakes that have a hybrid hydraulic configuration and ball screws for energy efficiency and quiet operation. Lastly, RAGOS brings to market the HG series which equates to the “flexible bending solutions” press brakes. Our brakes are typically high tonnage press brakes made to order to customer exact specifications with the option of running tandem or even trio press brakes, and material automation and handling options of every description.

Wholesale swing beam shear press suppliers for industrial used-1

4+1 axis positioning

Wholesale swing beam shear press suppliers for industrial used-2

6+1 axis positioning

Wholesale swing beam shear press suppliers for industrial used-3

6-1 axis positioning

Wholesale swing beam shear press suppliers for industrial used-4

6Hydraulic valve

Wholesale swing beam shear press suppliers for industrial used-5

Hydraulic system 1

Wholesale swing beam shear press suppliers for industrial used-6

Hydraulic system 2

Wholesale swing beam shear press suppliers for industrial used-7

Oil pump + main motor

Show details

Wholesale swing beam shear press suppliers for industrial used-8

Wholesale swing beam shear press suppliers for industrial used-9

Wholesale swing beam shear press suppliers for industrial used-10

CNC Controller

Wholesale swing beam shear press suppliers for industrial used-11

Wholesale swing beam shear press suppliers for industrial used-12

Wholesale swing beam shear press suppliers for industrial used-13

Wholesale swing beam shear press suppliers for industrial used-14

Wholesale swing beam shear press suppliers for industrial used-15

Wholesale swing beam shear press suppliers for industrial used-16

Parts name		Parameter	Unit

Nominal pressure		1600	KN
Workbench length		4000	mm
Distance between columns		3500	mm
Slider stroke		250	mm
Open height		500	mm
Throat depth		400	mm
Axis number of NC		Y1、Y2、X、R、V	axes
Main motor power		15	kw
Speed of slide	Fast down	160	mm/s
	Work	10	mm/s
	Return	130	mm/s
Back gauge X-axis	Stroke	600	mm
	Max. speed	350	mm/s

	Re-position accuracy	≤0.05	mm

Back gauge R axis	Stroke	200	mm
	Max. speed	200	mm/s

	Re-position accuracy	≤0.05	mm

Machine Dimensions	Length	4600	mm
	Width	1900	mm
	Height	2900	mm
Machine weight		12000	Kg

No.	Name	Country	Supplier
1	NC system	Italy	ESA S630 (optional)
		Holland	DELEM DA-53 series (optional)
		Switzerland	CYBELEC Cyb Touch12 PS (optional)
2	Servo motor	Japan	Yaskawa
3	Sealed linear encoder	German	ELGO
4	Hydraulic system	German	REXROTH/HEROBIGER
5	Oil pump	German	VIOTH
6	Ball screw	Taiwan	HIWIN/PMI
7	Straight guide rail	Taiwan	Taiwan HIWIN/ PMI
8	Seal	USA / Japan	USA/Japan NOK
9	Air switch	France	Schneider
10	Miniature relay	France	Schneider
11	Ac contactor	France	Schneider
12	Button	France	Schneider
13	Electrical components	France	Schneider
14	Socket joint	German	German original
