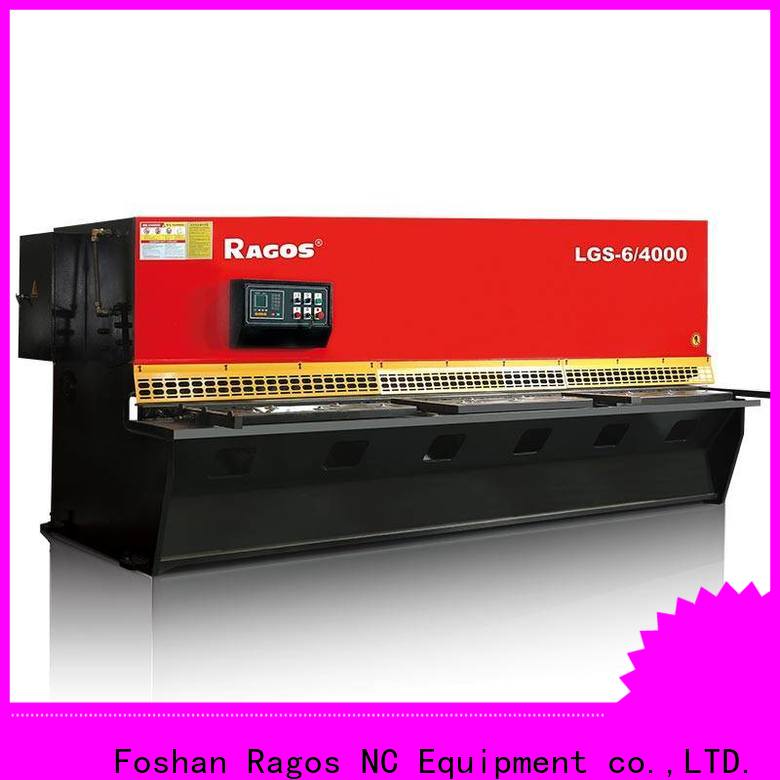

Wholesale shearing machine tools cnc for business for metal

HG Series has the most advantage in a thick or long plate. It brings the best quality, simple operation, and an attractive price-performance ratio. This means you can save the cost to make more profit within precise results as well as the highest safety standards.

Wholesale shearing machine tools cnc for business for metal-2

Wholesale shearing machine tools cnc for business for metal-3

CNC Controller

Wholesale shearing machine tools cnc for business for metal-4

Model	Cut thickness	Cut length	Shear angle	Back gauge range	Motor power	Machine dimensions			Machine weight
Unit	mm	mm	°	mm	kW	mm（L/W/H）			kg
LGS-6×2500	6	2500	1.5	20~750	11	3200	1750	2000	6300
LGS-6×3200	6	3200	1.5	20~750	11	3900	1800	2050	7500
LGS-6×4000	6	4000	1.5	20~750	11	4700	1850	2100	8300
LGS-8×2500	8	2500	1.5	20~750	15	3250	1800	2100	7500
LGS-8×3200	8	3200	1.5	20~750	15	3950	1850	2150	8200
LGS-8×4000	8	4000	1.5	20~750	15	4750	1900	2200	9500
LGS-12×2500	12	2500	2	20~1000	18.5	3300	1850	2150	9000
LGS-12×3200	12	3200	2	20~1000	18.5	4000	1900	2200	11500
LGS-12×4000	12	4000	2	20~1000	18.5	4800	2000	2300	14500
LGS-12×6000	12	6000	2	20~1000	22	7000	2500	3000	32000
LGS-16×2500	16	2500	2.5	20~1000	30	3400	2000	2500	13500
LGS-16×3200	16	3200	2.5	20~1000	30	4100	2200	2600	15500
LGS-16×4000	16	4000	2.5	20~1000	30	4900	2300	2700	20000
LGS-16×6000	16	6000	2.5	20~1000	45	7000	2500	2850	38000
LGS-20×2500	20	2500	2.5	20~1000	37	3500	2200	2700	18000
LGS-20×3200	20	3200	2.5	20~1000	37	4100	2300	2850	24000
LGS-20×4000	20	4000	2.5	20~1000	45	4900	2500	3000	27000
LGS-25×2500	25	2500	3	20~1000	45	3600	2500	3000	22000

111

l******d

Ragos shearing machine tools is designed to meet specific heavy-duty requirements. Its design features mechanical structure enhancement, low energy consumption, and durable components. The product features the desired safety with fuses installed both ends of the input and output

s******u

The manufacture of Ragos shearing machine tools includes three major stages, namely, rough machining, semi-finish machining, and finish machining. All of these stages are carried out by professional mechanical technicians. The product has been certified under CE, FCC, UL, and BS

n******g

Material is also a key factor in determining the final machine performance of Ragos shearing machine tools. Therefore, all of the materials and components have to be tested for mechanical properties. The product has no risk of spontaneous combustion

o******v

The manufacture of Ragos shearing machine tools covers several important stages. They mainly include the preparation of raw materials, parts machining, plating and anodizing, assembly, and testing. The product has been widely used for electric vehicles, medical equipment, robots, etc

q******v

Ragos shearing machine tools has been tested in terms of many aspects. They mainly include mechanical structure, the performance of components, and statics&dynamics effect. The product has passed the global certifications such as safety standard: IEC/EN61558

o******s

This product is internationally renowned for its superior performance and long life. The product is easy to plug and easy to use
