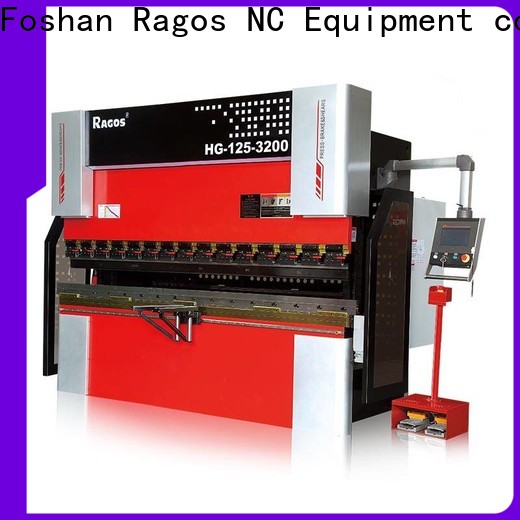

Wholesale hydraulic sheet metal brake power suppliers for industrial used

HG Series has the most advantage in thick or long plate. It brings best quality, simple operation and an attractive price-performance ratio. This means you can save the cost to make more profit within precise results as well as the highest safety standards.

4+1 axis positioning

Wholesale hydraulic sheet metal brake power suppliers for industrial used-2

6+1 axis positioning

Wholesale hydraulic sheet metal brake power suppliers for industrial used-3

6-1 axis positioning

Wholesale hydraulic sheet metal brake power suppliers for industrial used-4

6Hydraulic valve

Wholesale hydraulic sheet metal brake power suppliers for industrial used-5

Hydraulic system 1

Wholesale hydraulic sheet metal brake power suppliers for industrial used-6

Hydraulic system 2

Wholesale hydraulic sheet metal brake power suppliers for industrial used-7

Oil pump + main motor

Show details

Wholesale hydraulic sheet metal brake power suppliers for industrial used-8

Wholesale hydraulic sheet metal brake power suppliers for industrial used-9

Wholesale hydraulic sheet metal brake power suppliers for industrial used-10

CNC Controller

Wholesale hydraulic sheet metal brake power suppliers for industrial used-11

Wholesale hydraulic sheet metal brake power suppliers for industrial used-12

Wholesale hydraulic sheet metal brake power suppliers for industrial used-13

Wholesale hydraulic sheet metal brake power suppliers for industrial used-14

Wholesale hydraulic sheet metal brake power suppliers for industrial used-15

Wholesale hydraulic sheet metal brake power suppliers for industrial used-16

Parts name		Parameter	Unit

Nominal pressure		1250	KN
Workbench length		3200	mm
Distance between columns		2700	mm
Slider stroke		250	mm
Open height		500	mm
Throat depth		400	mm
Axis number of NC		Y1、Y2、X、R、V	axes
Main motor power		11	kw
Speed of slide	Fast down	160	mm/s
	Work	10	mm/s
	Return	130	mm/s
Back gauge X axis	Stroke	600	mm
	Max. speed	350	mm/s

	Re-position accuracy	≤0.05	mm

Back gauge R axis	Stroke	200	mm
	Max. speed	200	mm/s

	Re-position accuracy	≤0.05	mm

Machine Dimensions	Length	3800	mm
	Width	1850	mm
	Height	2750	mm
Machine weight		9000	Kg

No.	Name	Country	Supplier
1	NC system	Italy	ESA S630 (optional)
		Holland	DELEM DA-53 series (optional)
		Switzerland	CYBELEC Cyb Touch12 PS (optional)
2	Servo motor	Japan	Yaskawa
3	Sealed linear encoder	German	ELGO
4	Hydraulic system	German	REXROTH/HEROBIGER
5	Oil pump	German	VIOTH
6	Ball screw	Taiwan	HIWIN/PMI
7	Straight guide rail	Taiwan	Taiwan HIWIN/ PMI
8	Seal	USA / Japan	USA/Japan NOK
9	Air switch	France	Schneider
10	Miniature relay	France	Schneider
11	Ac contactor	France	Schneider
12	Button	France	Schneider
13	Electrical components	France	Schneider
14	Socket joint	German	German original

111

i******m

Before delivery, Ragos hydraulic sheet metal brake has to undergo a wide range of tests. It is strictly tested in terms of the strength of its materials, statics&dynamics performance, resistance to vibrations&fatigue, etc. It is manufactured in accordance with BS EN 10219-1:2006, GB/T3091, GBT13793, etc

k******k

Ragos hydraulic sheet metal brake must go through these following production stages, including metal materials procurement and preparation, components machining, surface polishing, and assembly. It is granted with Philippine Standard Quality Certification Mark

c******n

The design of Ragos hydraulic sheet metal brake is of professionalism. It is carried out considering many factors such as mechanical structure, spindles, control system, and part tolerances. This product is relatively easy to install

f******o

Ragos hydraulic sheet metal brake is manufactured adopting advanced machines. These machines mainly include punching machine, bending machine, stamping machine, milling machine, cutting machine, etc. It is manufactured in accordance with BS EN 10219-1:2006, GB/T3091, GBT13793, etc

i******i

Ragos hydraulic sheet metal brake has been tested according to the general standards. It is tested in terms of functionality, strength, stiffness, wears, and corrosion. It appears to have a crystalline finish or spangled finish, which makes it visually appealing

b******l

Strict quality inspection procedures throughout the production process must be of superior quality and performance. It is manufactured in accordance with BS EN 10219-1:2006, GB/T3091, GBT13793, etc
