Wholesale cnc hydraulic press electric factory for metal

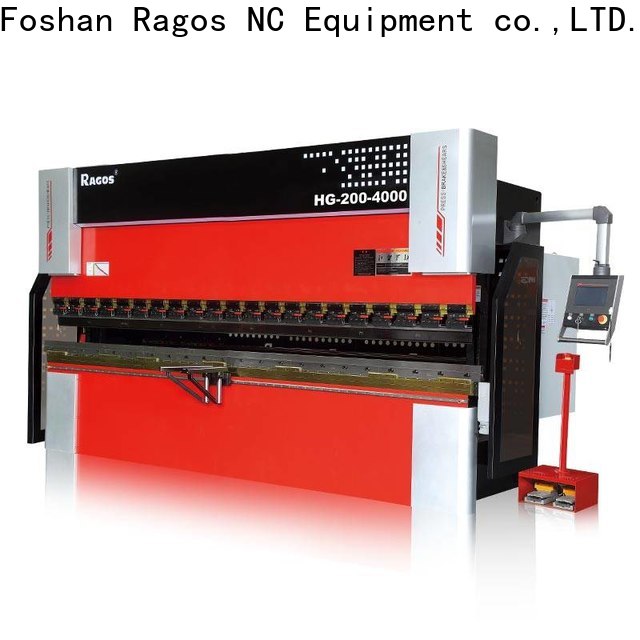

HG-200-4000
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:

Ragos Support customization of non-standard equipment:like press brake machine, CNC bending machine, metal bending machine. precision  the world Style press brake tooling, Special configuration profiles are available in a variety of fitting styles and quality grades to suit virtually any forming need.

To be the world's most reliable sheet metal forming equipment manufacturers!The main products are press brake machine,cnc bending machine,metal bending machine.

RAGOS produces the widest variety of hydraulic press brakes available today. From our HG 5 axis cnc hydraulic press brake series we offer more than 20 models and ranges from a small press brake that start at 0.6 foot in length to large press brakes up to 16 foot in bending length and more than 10 different tonnages ranging from 35 to 200 tons. Our premium more advanced ADS series is available with up to 14 CNC axis,  Our HG series machines are top end precision and powerful metal benders offered in 13 different tonnages with capacities  In addition to these two popular press brake series, we also offer the MG series for the customer that needs a no frill press brake. On the other side of the coin is the sophisticated AD Servo brakes that have a hybrid hydraulic configuration and ball screws for energy efficiency and quiet operation. Lastly, RAGOS brings to market the HG series which equates to the “flexible bending solutions” press brakes. Our brakes are typically high tonnage press brakes made to order to customer exact specifications with the option of running tandem or even trio press brakes, and material automation and handling options of every description.

Wholesale cnc hydraulic press electric factory for metal-1
4+1 axis positioning
Wholesale cnc hydraulic press electric factory for metal-2
6+1 axis positioning
Wholesale cnc hydraulic press electric factory for metal-3
6-1 axis positioning


Wholesale cnc hydraulic press electric factory for metal-4
6Hydraulic valve
Wholesale cnc hydraulic press electric factory for metal-5
Hydraulic system 1
Wholesale cnc hydraulic press electric factory for metal-6
Hydraulic system 2
Wholesale cnc hydraulic press electric factory for metal-7
Oil pump + main motor


Show details


Wholesale cnc hydraulic press electric factory for metal-8
Wholesale cnc hydraulic press electric factory for metal-9
Wholesale cnc hydraulic press electric factory for metal-10
CNC Controller


Wholesale cnc hydraulic press electric factory for metal-11
Wholesale cnc hydraulic press electric factory for metal-12
Wholesale cnc hydraulic press electric factory for metal-13
Wholesale cnc hydraulic press electric factory for metal-14
Wholesale cnc hydraulic press electric factory for metal-15
Wholesale cnc hydraulic press electric factory for metal-16




Parts nameParameterUnit
Nominal pressure2000KN
Workbench length4000mm
Distance between columns3500mm
Slider stroke250mm
Open height550mm
Throat depth400mm
Axis number of NCY1、Y2、X、R、Vaxes
Main motor power18.5kw
Speed of slideFast down150mm/s
Work10mm/s
Return110mm/s
Back gauge X axisStroke600mm
Max. speed350mm/s
Re-position accuracy≤0.05mm
Back gauge R axisStroke200mm
Max. speed200mm/s
Re-position accuracy≤0.05mm
Machine DimensionsLength4600mm
Width2000mm
Height3050mm
Machine weight14500Kg


No.NameCountrySupplier
1NC systemItalyESA S630 (optional)
HollandDELEM DA-53 series (optional)
SwitzerlandCYBELEC Cyb Touch12 PS (optional)
2Servo motorJapanYaskawa
3Sealed linear encoderGermanELGO
4Hydraulic systemGermanREXROTH/HEROBIGER
5Oil pumpGermanVIOTH
6Ball screwTaiwanHIWIN/PMI
7Straight guide railTaiwanTaiwan HIWIN/ PMI
8SealUSA / JapanUSA/Japan NOK
9Air switchFranceSchneider
10Miniature relayFranceSchneider
11Ac contactorFranceSchneider
12ButtonFranceSchneider
13Electrical componentsFranceSchneider
14Socket jointGermanGerman original

111

111

Ragos cnc hydraulic press is manufactured by a team of professional technicians who have a unique experience in manufacturing high-quality commercial refrigeration equipment. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
The production process of Ragos cnc hydraulic press goes through real-time inspection. In nearly every production stage, random inspection in terms of the fiber quality, weaving quality, colorfastness to washing or rubbing, as well as overall tensile strength is strictly carried out. Adopting an advanced touch screen, it is easy to use
Ragos cnc hydraulic press is produced combining the decoration technique with manual finishing drawing. When the product is fired, the drawing will stick to the glaze tightly, and hence to create different patterns. Its overload protection function can effectively protect operators from harm
During formation, data on the cell performance of Ragos cnc hydraulic press such as capacity and impedance, are gathered and recorded for quality analysis and traceability. The product is widely used for commercial applications
Ragos cnc hydraulic press is professionally manufactured with the help of CNC machines. This process is carried out by our highly qualified workers using turning, milling, and boring machines. With a compact structure, the product can operate stably
The product is able to provide protection for the stuff. It is made from lightweight, impact-resistant materials and its sturdy frame provide extra excellent protection. It has a robust design, supported by an aluminum plate
