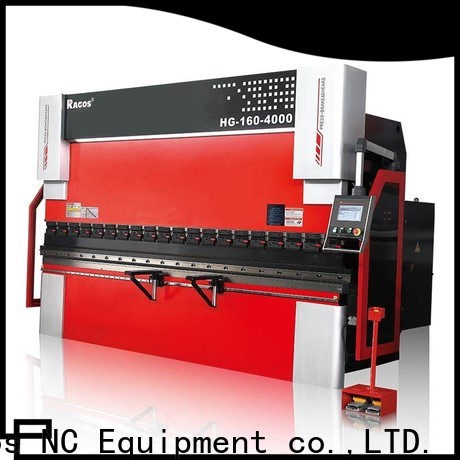

Wholesale best press break companies company for industrial

HG Series has the most advantage in thick or long plate. It brings best quality, simple operation and an attractive price-performance ratio. This means you can save the cost to make more profit within precise results as well as the highest safety standards.

4+1 axis positioning

Wholesale best press break companies company for industrial-2

6+1 axis positioning

Wholesale best press break companies company for industrial-3

6-1 axis positioning

Wholesale best press break companies company for industrial-4

6Hydraulic valve

Wholesale best press break companies company for industrial-5

Hydraulic system 1

Wholesale best press break companies company for industrial-6

Hydraulic system 2

Wholesale best press break companies company for industrial-7

Oil pump + main motor

Show details

Wholesale best press break companies company for industrial-8

Wholesale best press break companies company for industrial-9

Wholesale best press break companies company for industrial-10

CNC Controller

Wholesale best press break companies company for industrial-11

Wholesale best press break companies company for industrial-12

Wholesale best press break companies company for industrial-13

Wholesale best press break companies company for industrial-14

Wholesale best press break companies company for industrial-15

Wholesale best press break companies company for industrial-16

Parts name		Parameter	Unit

Nominal pressure		1600	KN
Workbench length		4000	mm
Distance between columns		3500	mm
Slider stroke		250	mm
Open height		500	mm
Throat depth		400	mm
Axis number of NC		Y1、Y2、X、R、V	axes
Main motor power		15	kw
Speed of slide	Fast down	160	mm/s
	Work	10	mm/s
	Return	130	mm/s
Back gauge X axis	Stroke	600	mm
	Max. speed	350	mm/s

	Re-position accuracy	≤0.05	mm

Back gauge R axis	Stroke	200	mm
	Max. speed	200	mm/s

	Re-position accuracy	≤0.05	mm

Machine Dimensions	Length	4600	mm
	Width	1900	mm
	Height	2900	mm
Machine weight		12000	Kg

No.	Name	Country	Supplier
1	NC system	Italy	ESA S630 (optional)
		Holland	DELEM DA-53 series (optional)
		Switzerland	CYBELEC Cyb Touch12 PS (optional)
2	Servo motor	Japan	Yaskawa
3	Sealed linear encoder	German	ELGO
4	Hydraulic system	German	REXROTH/HEROBIGER
5	Oil pump	German	VIOTH
6	Ball screw	Taiwan	HIWIN/PMI
7	Straight guide rail	Taiwan	Taiwan HIWIN/ PMI
8	Seal	USA / Japan	USA/Japan NOK
9	Air switch	France	Schneider
10	Miniature relay	France	Schneider
11	Ac contactor	France	Schneider
12	Button	France	Schneider
13	Electrical components	France	Schneider
14	Socket joint	German	German original

111

q******p

Before delivery, Ragos best press break has to undergo a wide range of tests. It is strictly tested in terms of the strength of its materials, statics&dynamics performance, resistance to vibrations&fatigue, etc. It is easy to process and economical

c******q

Ragos best press break must go through these following production stages, including metal materials procurement and preparation, components machining, surface polishing, and assembly. The length and wall thickness of this product can be customized

j******x

The design of Ragos best press break is of professionalism. It is carried out considering many factors such as mechanical structure, spindles, control system, and part tolerances. One of the primary advantages of this product is its malleability

q******b

Ragos best press break is manufactured adopting advanced machines. These machines mainly include punching machine, bending machine, stamping machine, milling machine, cutting machine, etc. This product comes with good mechanical properties

y******f

Ragos best press break has been tested according to the general standards. It is tested in terms of functionality, strength, stiffness, wears, and corrosion. It is granted with Philippine Standard Quality Certification Mark

u******p

Strict quality inspection procedures throughout the production process must be of superior quality and performance. Made by one of the Tianjin Science and Technology SMEs, its quality is guaranteed
