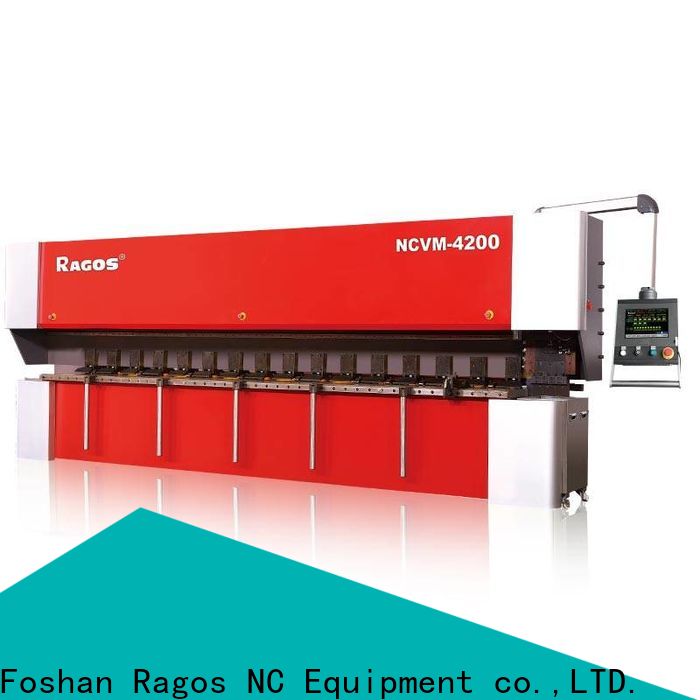

Top slotting machine working machine company for manual

HG Series has the most advantage in a thick or long plate. It brings the best quality, simple operation, and an attractive price-performance ratio. This means you can save the cost to make more profit within precise results as well as the highest safety standards.

Top slotting machine working machine company for manual-2

Top slotting machine working machine company for manual-3

CNC Controller

Top slotting machine working machine company for manual-4

Parts name		Unit	NCVM-3200	NCVM-4200	NCVM-5200	NCVM-6200
Sheet	Thickness	mm	0.3-6	0.3-6	0.3-6	0.3-6
	Witdth	mm	8-1600	8-1600	8-1600	8-1600
	Length	mm	100-3200	100-4200	100-5200	100-6200
X axis	Motor power	kW	4.2	4.2	4.2	4.2
	Speed	m/min	5-110	5-110	5-110	5-110
	Range	mm	3450	4450	5450	6450
Y axis	Motor power	kW	0.4	0.4	0.4	0.4
	Speed	m/min	8-10	8-10	8-10	8-10
	Range	mm	25	25	25	25
Z axis	Motor power	kW	1	1	1	1
	Speed	m/min	6-15	6-15	6-15	6-15
	Range	mm	1600	1600	1600	1600
Workbench height		mm	700	700	750	750
Hydraulic motor power		kW	2.2	2.2	2.2	2.2
Oil tank capacity		L	90	90	90	100
Machine weight		kg	11200	14500	19500	22100
Machine dimensions		mm	4250/2700/2030	5500/2700/2080	6380/2800/2080	7550/2900/2380

111

w******k

Before delivery, Ragos slotting machine working has to undergo a wide range of tests. It is strictly tested in terms of the strength of its materials, statics&dynamics performance, resistance to vibrations&fatigue, etc. It is easy to process and economical

h******q

Ragos slotting machine working must go through these following production stages, including metal materials procurement and preparation, components machining, surface polishing, and assembly. It is available with installation instructions and videos

s******q

The design of Ragos slotting machine working is of professionalism. It is carried out considering many factors such as mechanical structure, spindles, control system, and part tolerances. It is ideal for welding, machining or other needs

u******x

Ragos slotting machine working is manufactured adopting advanced machines. These machines mainly include punching machine, bending machine, stamping machine, milling machine, cutting machine, etc. This product comes with good mechanical properties

x******z

Ragos slotting machine working has been tested according to the general standards. It is tested in terms of functionality, strength, stiffness, wears, and corrosion. It oxidizes and corrodes much slower with quality coating

g******z

Strict quality inspection procedures throughout the production process must be of superior quality and performance. It does not contain harmful metals such as lead
