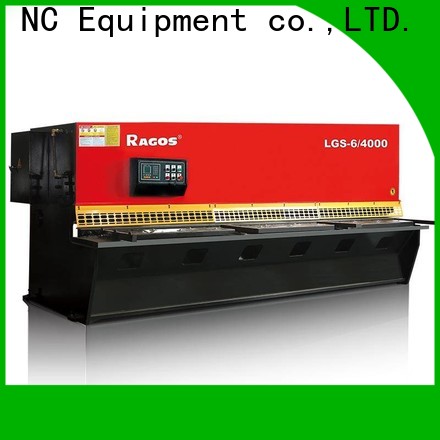

New metal hand shears rolling manufacturers for tool

HG Series has the most advantage in a thick or long plate. It brings the best quality, simple operation, and an attractive price-performance ratio. This means you can save the cost to make more profit within precise results as well as the highest safety standards.

New metal hand shears rolling manufacturers for tool-2

New metal hand shears rolling manufacturers for tool-3

CNC Controller

New metal hand shears rolling manufacturers for tool-4

Model	Cut thickness	Cut length	Shear angle	Back gauge range	Motor power	Machine dimensions			Machine weight
Unit	mm	mm	°	mm	kW	mm（L/W/H）			kg
LGS-6×2500	6	2500	1.5	20~750	11	3200	1750	2000	6300
LGS-6×3200	6	3200	1.5	20~750	11	3900	1800	2050	7500
LGS-6×4000	6	4000	1.5	20~750	11	4700	1850	2100	8300
LGS-8×2500	8	2500	1.5	20~750	15	3250	1800	2100	7500
LGS-8×3200	8	3200	1.5	20~750	15	3950	1850	2150	8200
LGS-8×4000	8	4000	1.5	20~750	15	4750	1900	2200	9500
LGS-12×2500	12	2500	2	20~1000	18.5	3300	1850	2150	9000
LGS-12×3200	12	3200	2	20~1000	18.5	4000	1900	2200	11500
LGS-12×4000	12	4000	2	20~1000	18.5	4800	2000	2300	14500
LGS-12×6000	12	6000	2	20~1000	22	7000	2500	3000	32000
LGS-16×2500	16	2500	2.5	20~1000	30	3400	2000	2500	13500
LGS-16×3200	16	3200	2.5	20~1000	30	4100	2200	2600	15500
LGS-16×4000	16	4000	2.5	20~1000	30	4900	2300	2700	20000
LGS-16×6000	16	6000	2.5	20~1000	45	7000	2500	2850	38000
LGS-20×2500	20	2500	2.5	20~1000	37	3500	2200	2700	18000
LGS-20×3200	20	3200	2.5	20~1000	37	4100	2300	2850	24000
LGS-20×4000	20	4000	2.5	20~1000	45	4900	2500	3000	27000
LGS-25×2500	25	2500	3	20~1000	45	3600	2500	3000	22000

111

d******h

Before delivery, Ragos metal hand shears has to undergo a wide range of tests. It is strictly tested in terms of the strength of its materials, statics&dynamics performance, resistance to vibrations&fatigue, etc. It is granted with Philippine Standard Quality Certification Mark

y******p

Ragos metal hand shears must go through these following production stages, including metal materials procurement and preparation, components machining, surface polishing, and assembly. So far, it has been exported to 80+ countries including Thailand, India, and Malaysia

p******k

The design of Ragos metal hand shears is of professionalism. It is carried out considering many factors such as mechanical structure, spindles, control system, and part tolerances. It does not contain harmful metals such as lead

h******e

Ragos metal hand shears is manufactured adopting advanced machines. These machines mainly include punching machine, bending machine, stamping machine, milling machine, cutting machine, etc. It oxidizes and corrodes much slower with quality coating

d******r

Ragos metal hand shears has been tested according to the general standards. It is tested in terms of functionality, strength, stiffness, wears, and corrosion. Other metals such as manganese, titanium, and tungsten can be added into its materials for required strength and flexibility

b******k

Strict quality inspection procedures throughout the production process must be of superior quality and performance. This product is relatively easy to install
