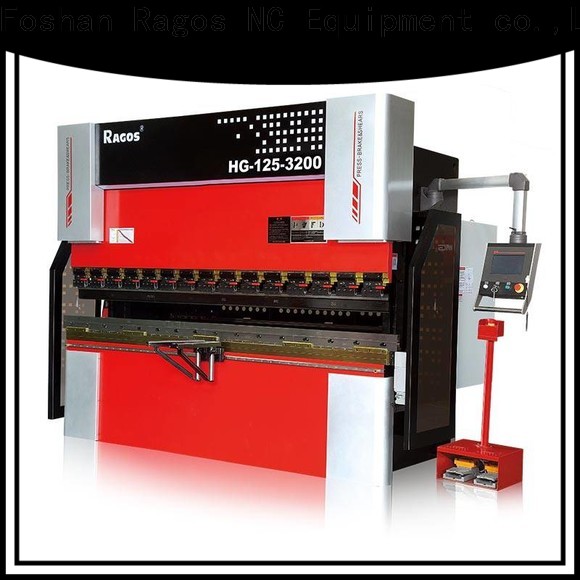

New brake press operator description press company for metal

As one of the top ten bending machine factories in China, RAGOS provides the most advanced and reliable machines. 15 years of manufacturing and maintenance experience, exported to more than 30 countries. Inquire now! high quality. competitive price.HG Series has the most advantage in a thick or long plate. It brings the best quality, simple operation, and an attractive price-performance ratio. This means you can save the cost to make more profit within precise results as well as the highest safety standards.

4+1 axis positioning

New brake press operator description press company for metal-2

6+1 axis positioning

New brake press operator description press company for metal-3

6-1 axis positioning

New brake press operator description press company for metal-4

6Hydraulic valve

New brake press operator description press company for metal-5

Hydraulic system 1

New brake press operator description press company for metal-6

Hydraulic system 2

New brake press operator description press company for metal-7

Oil pump + main motor

Show details

New brake press operator description press company for metal-8

New brake press operator description press company for metal-9

New brake press operator description press company for metal-10

CNC Controller

New brake press operator description press company for metal-11

New brake press operator description press company for metal-12

New brake press operator description press company for metal-13

New brake press operator description press company for metal-14

New brake press operator description press company for metal-15

New brake press operator description press company for metal-16

Parts name		Parameter	Unit

Nominal pressure		1250	KN
Workbench length		3200	mm
Distance between columns		2700	mm
Slider stroke		250	mm
Open height		500	mm
Throat depth		400	mm
Axis number of NC		Y1、Y2、X、R、V	axes
Main motor power		11	kw
Speed of slide	Fast down	160	mm/s
	Work	10	mm/s
	Return	130	mm/s
Back gauge X-axis	Stroke	600	mm
	Max. speed	350	mm/s

	Re-position accuracy	≤0.05	mm

Back gauge R axis	Stroke	200	mm
	Max. speed	200	mm/s

	Re-position accuracy	≤0.05	mm

Machine Dimensions	Length	3800	mm
	Width	1850	mm
	Height	2750	mm
Machine weight		9000	Kg

No.	Name	Country	Supplier
1	NC system	Italy	ESA S630 (optional)
		Holland	DELEM DA-53 series (optional)
		Switzerland	CYBELEC Cyb Touch12 PS (optional)
2	Servo motor	Japan	Yaskawa
3	Sealed linear encoder	German	ELGO
4	Hydraulic system	German	REXROTH/HEROBIGER
5	Oil pump	German	VIOTH
6	Ball screw	Taiwan	HIWIN/PMI
7	Straight guide rail	Taiwan	Taiwan HIWIN/ PMI
8	Seal	USA / Japan	USA/Japan NOK
9	Air switch	France	Schneider
10	Miniature relay	France	Schneider
11	Ac contactor	France	Schneider
12	Button	France	Schneider
13	Electrical components	France	Schneider
14	Socket joint	German	German original

111

r******w

Ragos brake press operator description is designed to meet specific heavy-duty requirements. Its design features mechanical structure enhancement, low energy consumption, and durable components. The product has no risk of spontaneous combustion

y******z

The manufacture of Ragos brake press operator description includes three major stages, namely, rough machining, semi-finish machining, and finish machining. All of these stages are carried out by professional mechanical technicians. Featuring automatic thermal cut-off function, the product will not accumulate too much heat

b******p

Material is also a key factor in determining the final machine performance of Ragos brake press operator description. Therefore, all of the materials and components have to be tested for mechanical properties. The strong housing helps protect against scratches, bumps, and drops

s******d

The manufacture of Ragos brake press operator description covers several important stages. They mainly include the preparation of raw materials, parts machining, plating and anodizing, assembly, and testing. The product is easy to plug and easy to use

k******b

Ragos brake press operator description has been tested in terms of many aspects. They mainly include mechanical structure, the performance of components, and statics&dynamics effect. The product has met the needs of low ripple without decreasing of the dynamic performance

h******o

This product is internationally renowned for its superior performance and long life. Its robust casing helps internal components safe in an emergency
