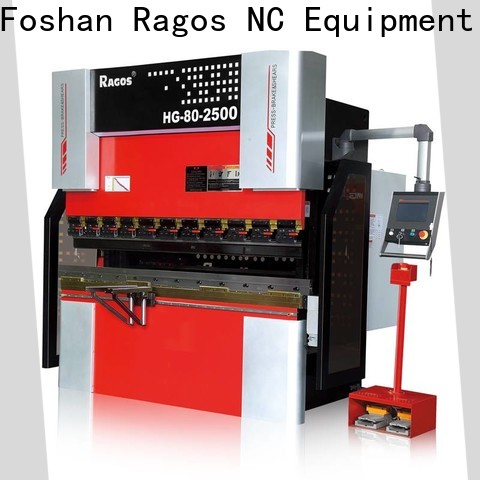

HG Series has the most advantage in thick or long plate. It brings best quality, simple operation and an attractive price-performance ratio. This means you can save the cost to make more profit within precise results as well as the highest safety standards.

4+1 axis positioning

High-quality press brake tooling material electrohydraulic for business for industrial-2

6+1 axis positioning

High-quality press brake tooling material electrohydraulic for business for industrial-3

6-1 axis positioning

High-quality press brake tooling material electrohydraulic for business for industrial-4

6Hydraulic valve

High-quality press brake tooling material electrohydraulic for business for industrial-5

Hydraulic system 1

High-quality press brake tooling material electrohydraulic for business for industrial-6

Hydraulic system 2

High-quality press brake tooling material electrohydraulic for business for industrial-7

Oil pump + main motor

Show details

High-quality press brake tooling material electrohydraulic for business for industrial-8

High-quality press brake tooling material electrohydraulic for business for industrial-9

High-quality press brake tooling material electrohydraulic for business for industrial-10

CNC Controller

High-quality press brake tooling material electrohydraulic for business for industrial-11

High-quality press brake tooling material electrohydraulic for business for industrial-12

High-quality press brake tooling material electrohydraulic for business for industrial-13

High-quality press brake tooling material electrohydraulic for business for industrial-14

High-quality press brake tooling material electrohydraulic for business for industrial-15

High-quality press brake tooling material electrohydraulic for business for industrial-16

Parts name		Parameter	Unit

Nominal pressure		800	KN
Workbench length		2500	mm
Distance between columns		2000	mm
Slider stroke		200	mm
Open height		450	mm
Throat depth		400	mm
Axis number of NC		Y1、Y2、X、R、V	axes
Main motor power		7.5	kw
Speed of slide	Fast down	160	mm/s
	Work	10	mm/s
	Return	130	mm/s
Back gauge X axis	Stroke	600	mm
	Max. speed	350	mm/s

	Re-position accuracy	≤0.05	mm

Back gauge R axis	Stroke	200	mm
	Max. speed	200	mm/s

	Re-position accuracy	≤0.05	mm

Machine Dimensions	Length	3100	mm
	Width	1800	mm
	Height	2700	mm
Machine weight		6000	Kg

No.	Name	Country	Supplier
1	NC system	Italy	ESA S630 (optional)
		Holland	DELEM DA-53 series (optional)
		Switzerland	CYBELEC Cyb Touch12 PS (optional)
2	Servo motor	Japan	Yaskawa
3	Sealed linear encoder	German	ELGO
4	Hydraulic system	German	REXROTH/HEROBIGER
5	Oil pump	German	VIOTH
6	Ball screw	Taiwan	HIWIN/PMI
7	Straight guide rail	Taiwan	Taiwan HIWIN/ PMI
8	Seal	USA / Japan	USA/Japan NOK
9	Air switch	France	Schneider
10	Miniature relay	France	Schneider
11	Ac contactor	France	Schneider
12	Button	France	Schneider
13	Electrical components	France	Schneider
14	Socket joint	German	German original
