Best mechanical plate bending machine roll factory for metal

Although the manufacturing and accuracy of sheet metal equipment bending machines have been greatly improved than in the past, there is still a big gap between the "Road to Industry 4.0" and "Intelligent Manufacturing and Made in China 2025". "Personalized customization, service-oriented extension, and networked collaboration" also require joint innovation and development in the subdivision of sheet metal equipment manufacturing and the demand side. This innovative development, promotion and application is another increase and liberation of productivity.

The traditional bending of the sheet metal industry needs to solve the following problems: (1) Manufacturing problems: can not achieve multiple varieties, small batches, and fast switching; (2) The problem of low precision of parts: low precision of high-precision workpieces in the sheet metal industry. Unstable quality; (3) The problem of difficult employment for enterprises: the shortage of sheet metal bending operators and the high labor intensity of workers; (4) Comprehensive problems: personnel costs, safety hazards, process layout, management and operation.

The above problems can be solved by selecting a set of intelligent manipulator bending unit: including CNC bending machine, manipulator and guide rail, supporting feeding station, magnetic sheet separation device, centering positioning table, sheet turning mechanism, upper Material gripper, finished product stacking, offline programming software, parametric programming software and secondary development related bending software and extended services.

Come to Ragos and choose your bending machine

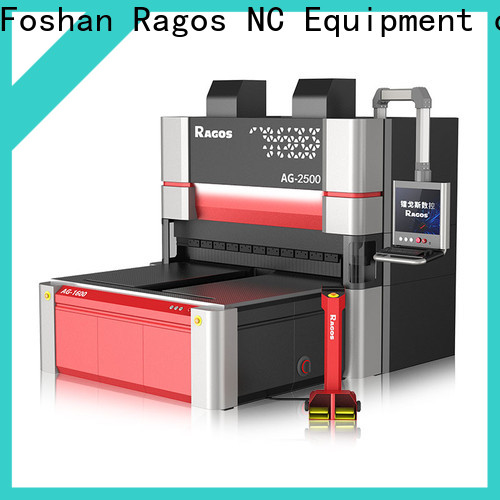

Best mechanical plate bending machine roll factory for metal-1

Best mechanical plate bending machine roll factory for metal-2

Best mechanical plate bending machine roll factory for metal-3

Show details

Best mechanical plate bending machine roll factory for metal-4

Best mechanical plate bending machine roll factory for metal-5

Operation Mode

Model		Unit	AG-2500
Bending Length		mm	2500
Plate Length		mm	2500
Plate Width		mm	2500
Bending Height		mm	175/350
Min Forming Size (Four sides)		mm	200*400
Min Forming Size (Two sides)		mm	150
Min Radius		mm	1.2
Bending Speed		s	0.5
Opening Height		mm	200/ 400
Angle		/	0-360°
Pressure		kN	500
Material Thickness		mm	3
Numerical System		/	Japan NADIC
Operating System		OS	Win7+OS
Axis		axes	9/11
Machine Dimension	Length	mm	3100
	Width	mm	3750
	Height	mm	2400
Machine Weight		kg	9000

Part Name	Country	Manufacturer	Remarks
Rack	China	Ragos
Mold clamping	China	Ragos
Control system	Japan	Developed with NADIC co., LTD
Servo motor	Japan	SANYO
Servo	Japan	SANYO
Guide rail	Taiwan	HIWIN
Ball screw	Taiwan	TBI
Miniature relay	France	Schneider
Ac contactor	France	Schneider
Button	France	Schneider
Electrical components	France	Schneider
Reducer	Taiwan	APEX

16156245335594.pdf

s******r

Ragos mechanical plate bending machine is designed to meet specific heavy-duty requirements. Its design features mechanical structure enhancement, low energy consumption, and durable components. The product has been EMI/EMS certified

z******w

The manufacture of Ragos mechanical plate bending machine includes three major stages, namely, rough machining, semi-finish machining, and finish machining. All of these stages are carried out by professional mechanical technicians. Featuring automatic thermal cut-off function, the product will not accumulate too much heat

o******y

Material is also a key factor in determining the final machine performance of Ragos mechanical plate bending machine. Therefore, all of the materials and components have to be tested for mechanical properties. Featuring the overcurrent and overvoltage protection function, the product is safe for use

v******v

The manufacture of Ragos mechanical plate bending machine covers several important stages. They mainly include the preparation of raw materials, parts machining, plating and anodizing, assembly, and testing. The product has been certified under CE, FCC, UL, and BS

e******k

Ragos mechanical plate bending machine has been tested in terms of many aspects. They mainly include mechanical structure, the performance of components, and statics&dynamics effect. The product has met the needs of low ripple without decreasing of the dynamic performance

i******v

This product is internationally renowned for its superior performance and long life. Featuring automatic thermal cut-off function, the product will not accumulate too much heat
